CryoTel Options

Cryocooler Configuration Variations Available

The CryoTel family of cryocoolers has several options to assist you in meeting your requirements.

Vacuum flange

Many cryocooler applications require the load to be in a vacuum.  To accommodate this Sunpower offers a vacuum flange option.  The standard is an NW50 flange.  Sunpower can also integrate a custom flange to meet your requirements.  Sunpower offers permanent and removable NW50 flange options.

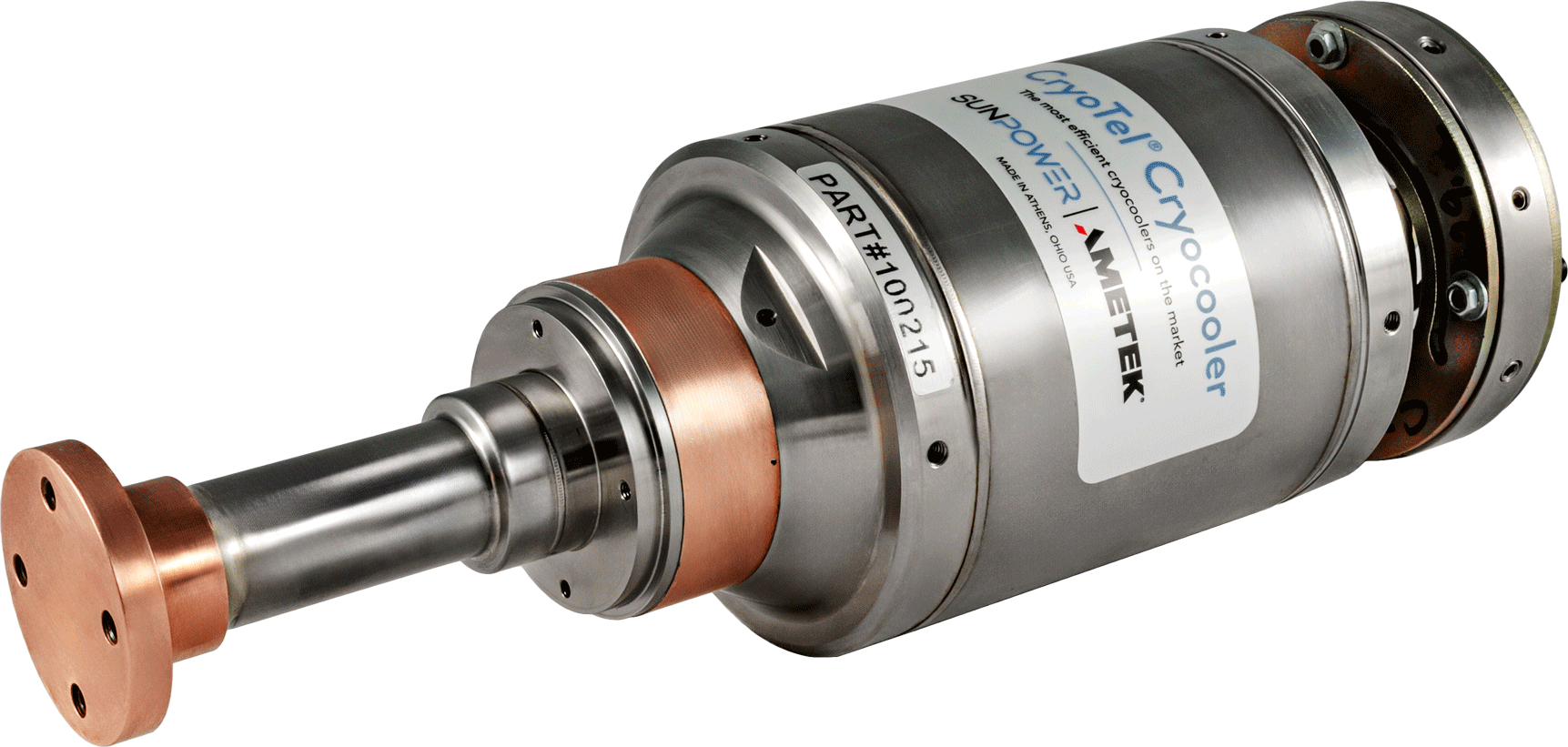

CT cooler with no vacuum flange

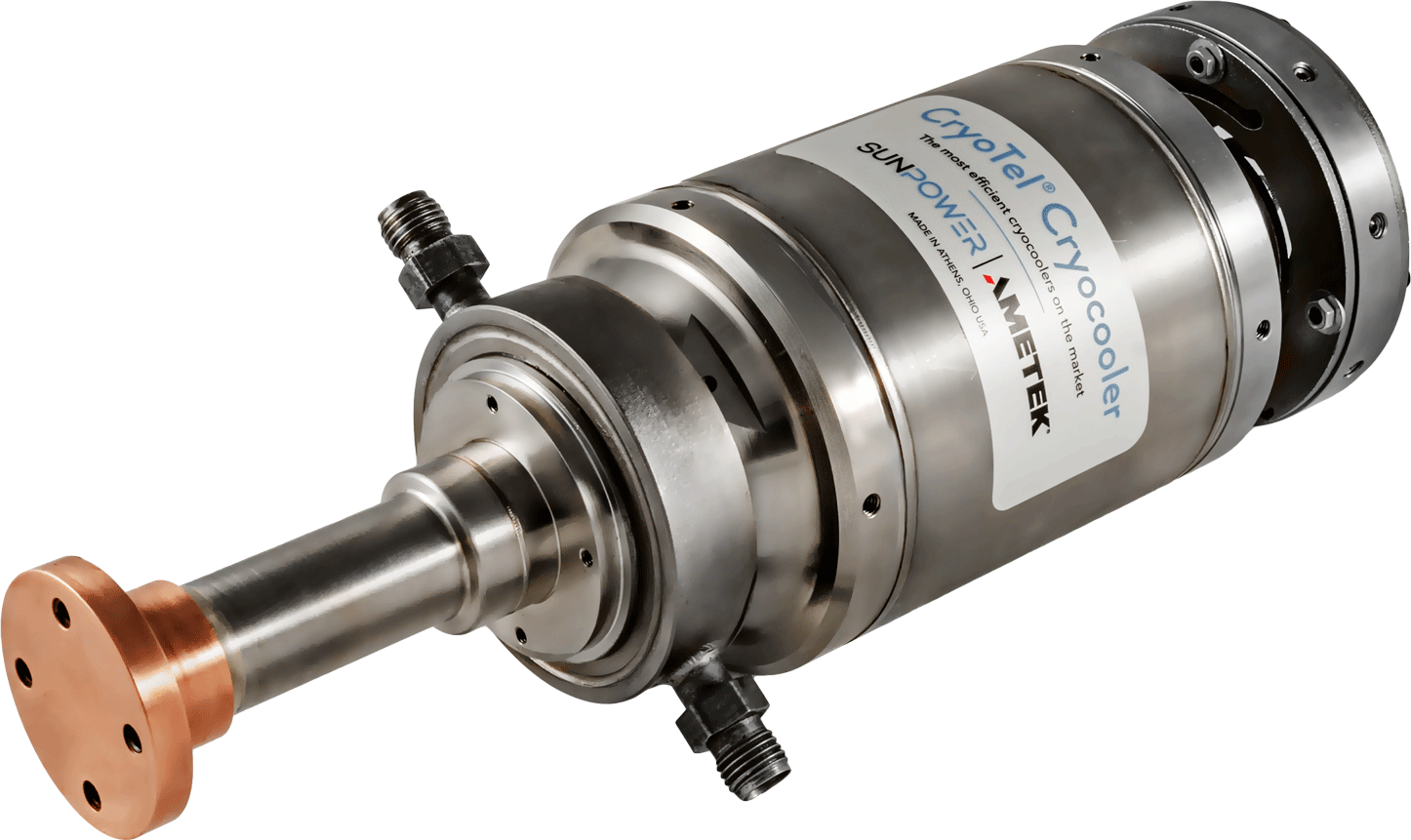

CT cooler with NW50 flange (and water jacket)


Heat rejection options

The cryocooler operates by moving heat from the cold finger region to the heat rejecter region. This heat must then be removed from the cryocooler to prevent the cryocooler from overheating and getting damaged. The most common cause of cryocooler returns is overheating. The customer must always cool the cryocooler to prevent damage. The drawing below shows the heat rejection region where this heat is removed from the cryocooler.


The two standard ways to accomplish this are via airfins or via a water jacket.

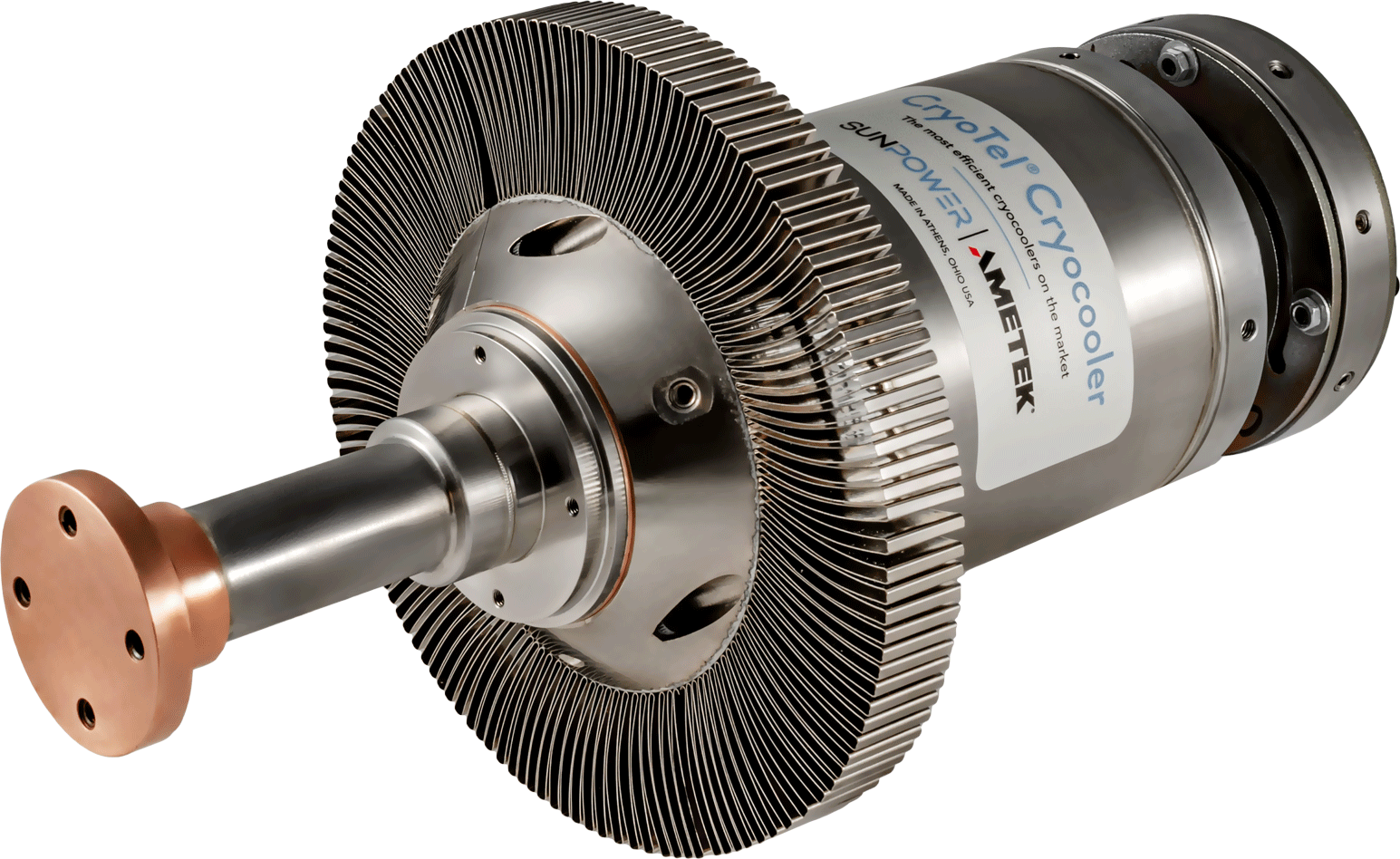

Airfin Option


Water Jacket Option


The air fins are mounted to the heat rejecter. Heat is transferred from the heat rejecter to the fins, where forced air absorbs it and removes it from the system. In order to use the air fin option, your design must not allow for a gap > 1 mm between the air fins and the shroud. This will ensure that the air will go through the fins instead of the air gap. The minimum airflow required to maintain proper cooling is 100cfm. Sunpower offers permanent and removable air fins.

The water jacket is placed over the heat rejection area and water is forced through the water jacket system. The standard connector is a ¼” Swagelok compression fitting. Both the airfin and the water jacket are available as removable or permanent options.

For some applications, the customer has utilized conductive cooling to reject heat. The amount of heat rejection needs to equal the input power delivered to the controller, so at maximum power the MT needs 80 Watts, the CT 160 Watts, and the GT needs 240 Watts. The customer must be careful in the design of the system to guarantee the conductive heat rejection will meet the requirements otherwise the cryocooler will be damaged.

Vibration Reduction

The cryocooler has internal components that oscillate at 60Hz for the cryocooler to function properly. There are several options to reduce this vibration.

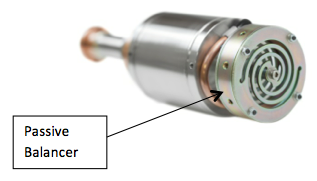

Passive balancer

The standard option is a passive balancer, also referred to as a passive absorber.  This device is tuned to oscillate at 60Hz and absorb energy at this frequency.  The passive balancer will have an amplitude of 3.0 mm for a MT, 3.5 mm for a CT and 5 mm for a GT.



Active Vibration Control

The AVC will significantly reduce the exported vibration of the cryocooler. The AVc will have an amplitude similar to the passive balancer, but is longer.


Pressure Vessel Cooling

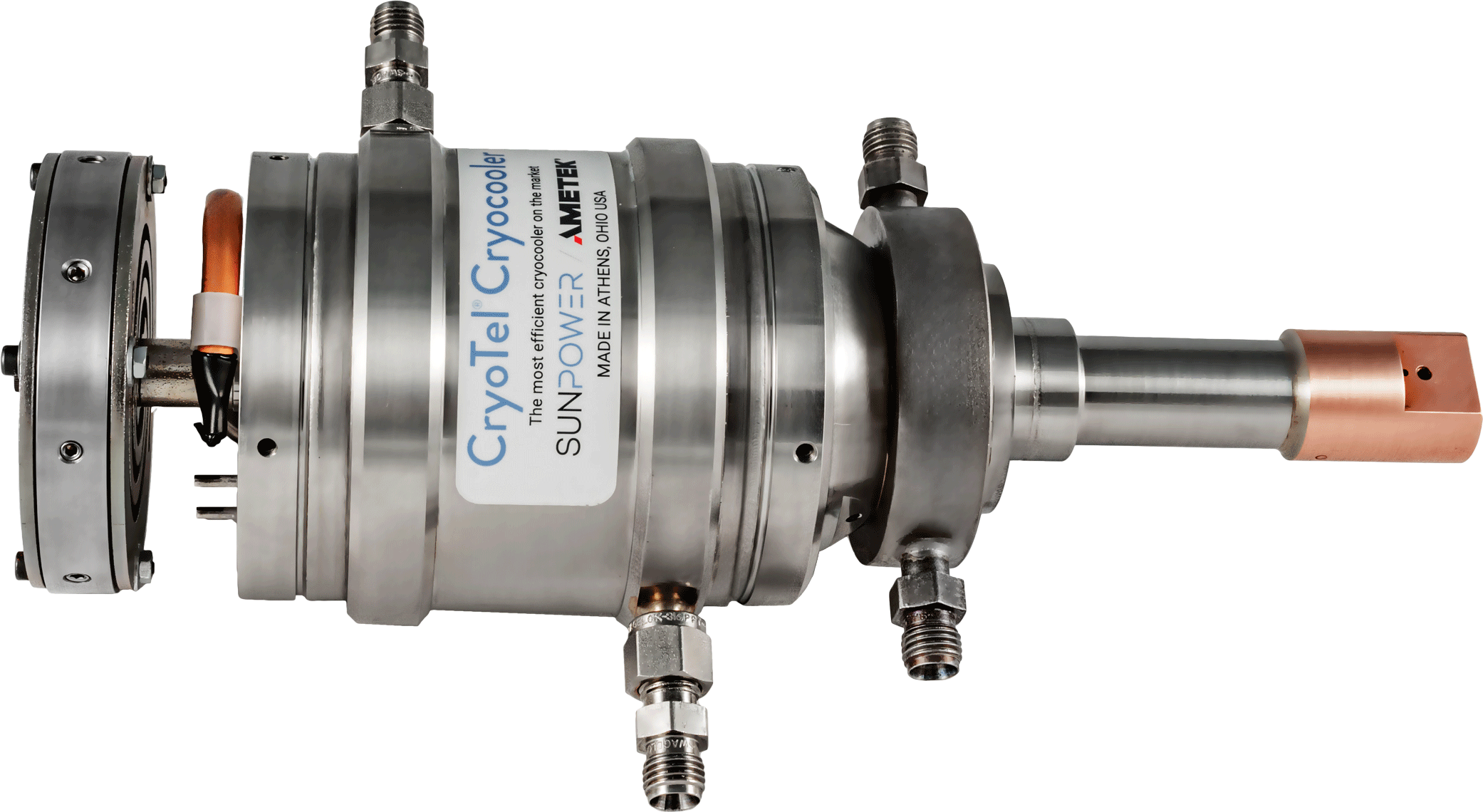

Sunpower offers a pressure vessel cooling jacket that slips over the back end of the cooler and attaches to a water jacket. The net effect is reduced temperature at the back end which results in improved cryocooler performance.
